System Parameters:
| Item | Specification |
| Material | Zinc Alloy + Copper Key |
| Surface Treatment | Chrome/ Nickel plated |
| Weight | 63.9g |
| Size | 23/16mm |
| MOQ | 500pcs |
| Logo | Logo printed is available |
| Type | Disc Tumbler Cam Lock |
| Key type: | two brass keys per lock, nickle plated |
| Key Spes | key alike, key different |
| Mechanism | disc/flat locking system |
| Rotation | 90°/180° Clockwise |
| Sample | Available |
Description:

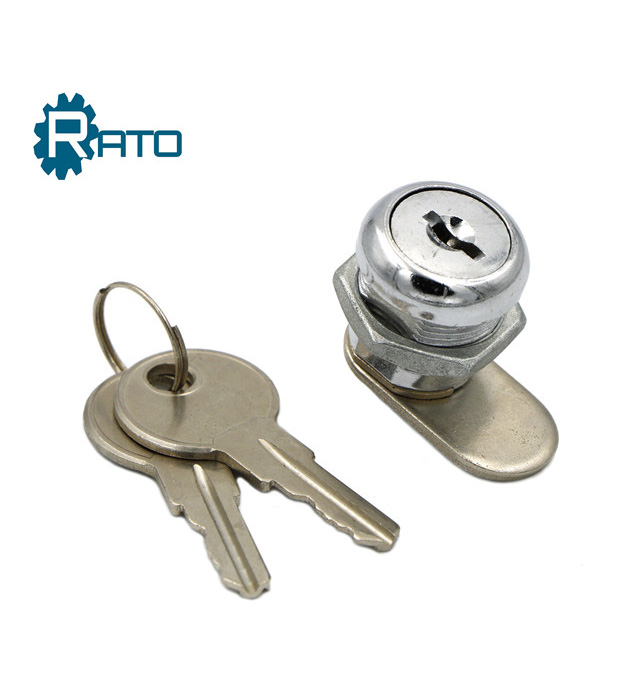

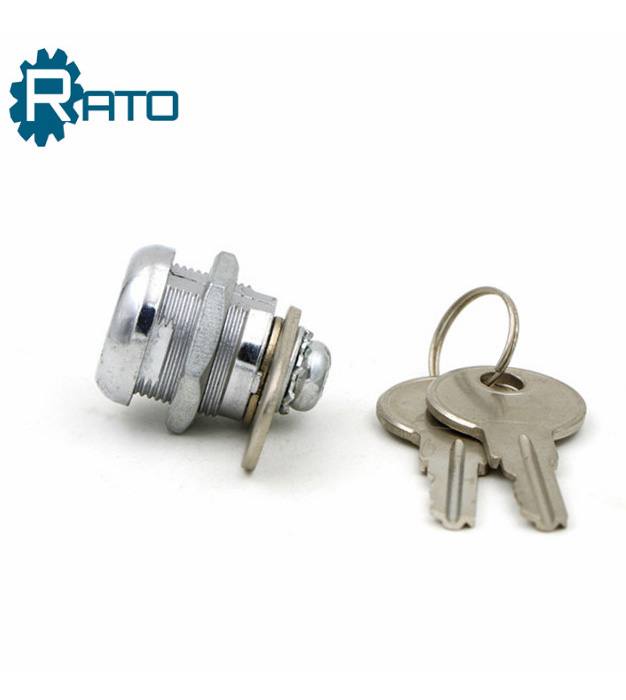

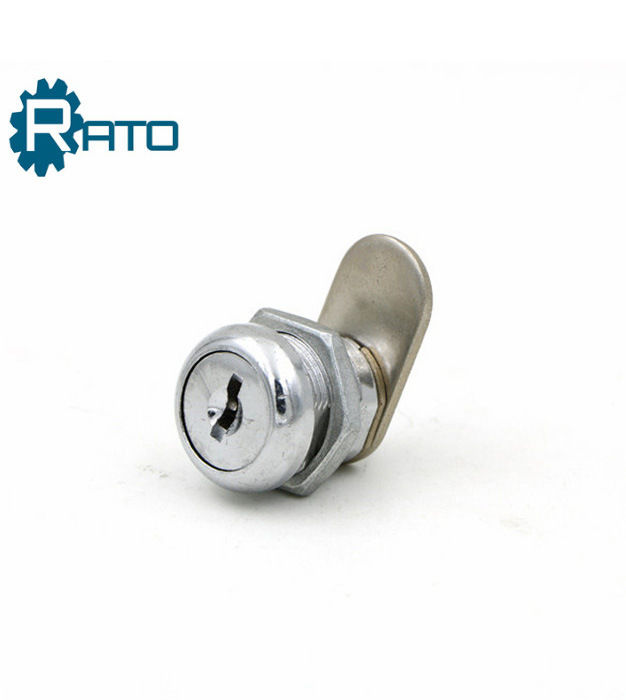

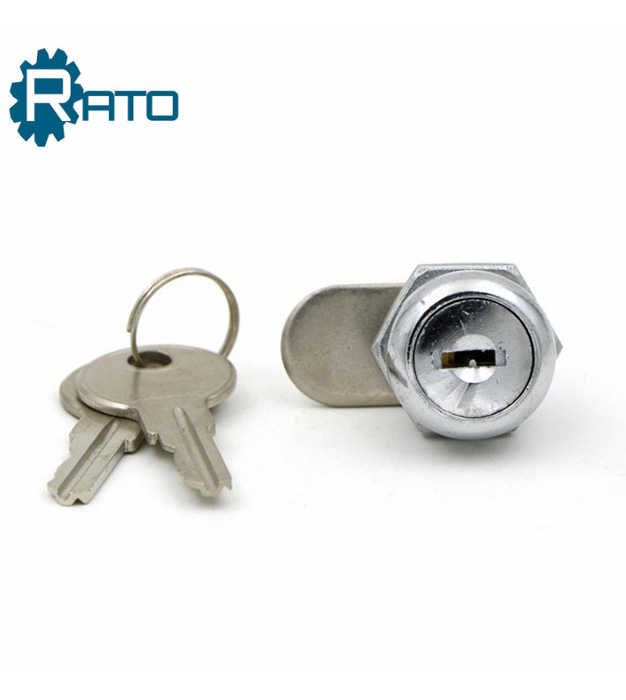

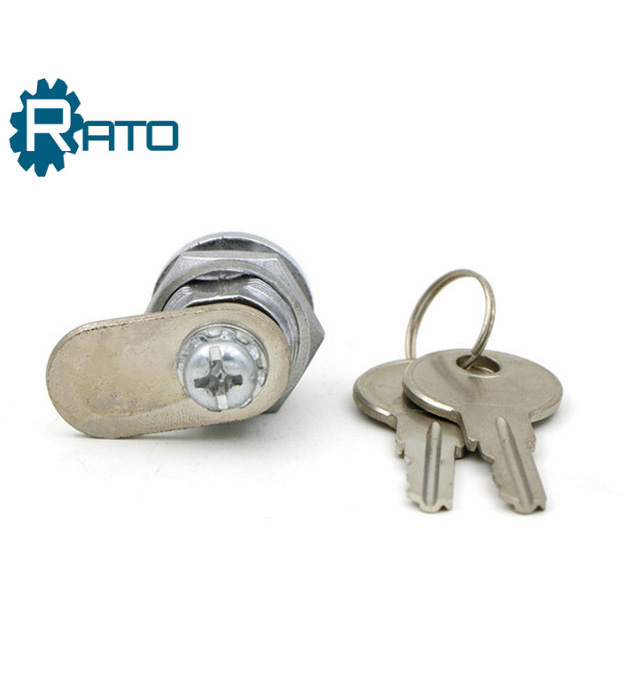

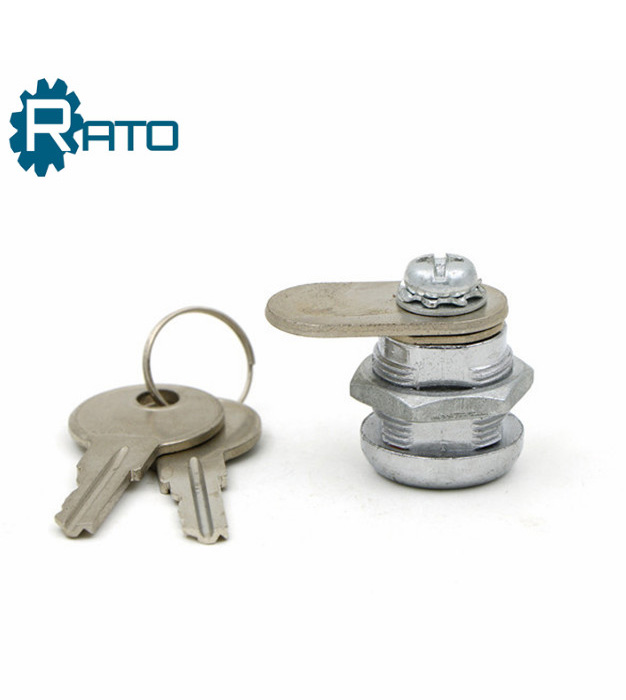

· This disc tumbler cam lock comes with two keys per lock and is keyed alike, each key will fit every lock - it is also non-key retaining
· The disc cam lock has a 7/8" cylinder length and can fit material thickness of up to 5/8" - it is a standard size cam lock with 3/4" diameter
· Cam lock ships with two keys (Key Code 644), a steel cylinder nut, stop cam, 1-1/4" cam and cam nut - the tubular lock is constructed of zinc alloy and has a chrome finish
· Offers incredibly versatile installation options - the cam can be installed on the lock at the 3, 6, 9 and 12 o'clock positions and opens with a 90 degree turn
· Ships with a reversible stop cam and is available non-key retaining - the key can be removed from the lock from the locked and unlocked position

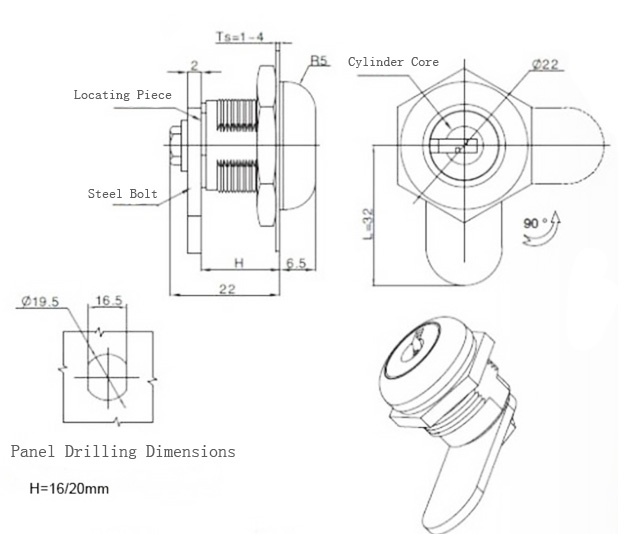

Lock Drawing:
Application:
Disc Tumbler Cam Lock is mainly used for Steel furniture, mailbox, locker, tool box, cash register, drawer, cabinet, safe box, Showcase, etc...
Packing:
Chrome Finish 7/8" Cylinder Keyed Alike Disc Tumbler Cam Lock is based on common foreign trade packaging. each piece lock in a poly bag, 20 pcs per inner carton, 200pcs per export carton. or we can make the packaging follow your requirements.
